LNG Cryogenic Tank
Optimizing Efficiency and Safety with Reliable LNG Storage
DSW Industry is a leading provider of LNG storage tanks, also known as LNG cryogenic tanks, designed explicitly for Liquefied Natural Gas (LNG).
We cater to a global audience and offer a comprehensive range of standard and custom-engineered solutions to meet your unique storage and regasification requirements.
Domestic and international clients trust and praise us for our LNG Tank, Cheap Co2 Tanks, Cryogenic Liquid Dewar, and LNG Cryogenic Tank.
We aim to maintain our excellent reputation as a premier product supplier worldwide.

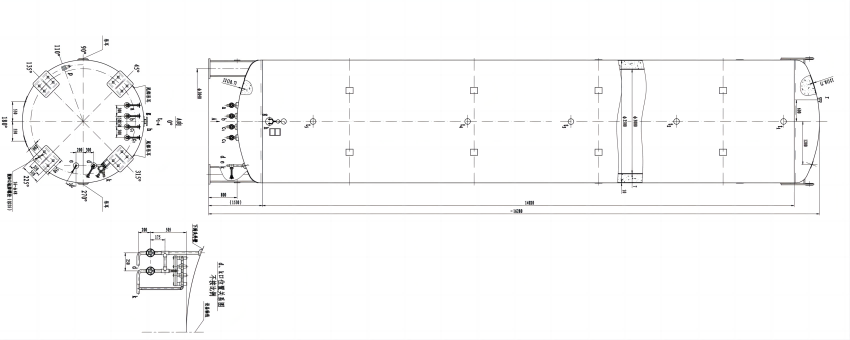

(Liquid Natural Gas) LNG Tank Sizes
specifications for regular liquid storage tanks designed for LNG:
| Model | Volume (m³) | Working Pressure (MPa) | Evaporation per Day (%/d) | Weight (Kg) | Size (mm) |
|---|---|---|---|---|---|
| CFL-30/0.6 | 30 | 0.6 | ≤0.45 | 14,370 | Φ2616×10991 |
| CFL-30/0.8 | 30 | 0.8 | ≤0.45 | 15,350 | Φ2616×10991 |
| CFL-50/0.6 | 50 | 0.6 | ≤0.35 | 21,760 | Φ3020×12657 |
| CFL-50/0.8 | 50 | 0.8 | ≤0.35 | 23,120 | Φ3020×12657 |
| CFL-100/0.6 | 100 | 0.6 | ≤0.25 | 37,480 | Φ3520×16887 |
| CFL-100/0.8 | 100 | 0.8 | ≤0.25 | 40,330 | Φ3520×16887 |
| CFL-150/0.6 | 150 | 0.6 | ≤0.225 | 52,110 | Φ3700×21600 |
| CFL-150/0.8 | 150 | 0.8 | ≤0.225 | 61,400 | Φ2416×7450 |
These tanks are engineered to ensure minimal evaporation loss, high durability, and robust performance, tailored to meet stringent LNG storage requirements.
The piping system is designed using pre-assembled standard modules, which can be configured to meet specific customer requirements.
This modular approach ensures optimal performance and enhanced reliability, tailored to individual needs.
The painting procedures and techniques provided by DSW ensure extended durability and superior resistance to corrosion.
Unparalleled Storage Capacity and Performance
- Diverse Tank Options: DSW Industry offers a wide selection of LNG storage tanks, ranging from 89m³ to 1225m³, available in horizontal and vertical configurations to suit your specific needs.
- Outstanding Thermal Efficiency: Our tanks feature a lightweight stainless-steel inner vessel encased in a robust outer jacket. Combined with superior vacuum insulation technology, this design minimizes heat transfer, ensuring extended LNG hold times and minimal product loss.
What is LNG?
Liquefied natural gas (LNG) is natural gas that has undergone a cooling process, reaching a liquid state at approximately -260°F, facilitating its transportation and storage.
LNG occupies approximately 600 times less volume in its liquid form than in its gaseous state within a natural gas pipeline.
LNG ISO tank container
These tanks, with working pressures ranging from 100psi to 10 Bar, are specifically designed for safely transporting LNG.
Furthermore, these LNG tanks come equipped with high-vacuum insulation, stacking capabilities of 9 units high, complete sets of decals, and various pipework options, offering maximum versatility to both user and operator.
What are the different types of storage tanks for LNG?
There are three primary storage containment types for LNG storage systems: single, double, and full containment.
Single containment systems consist of an inner and outer container designed to store liquid.
While the inner container holds liquid tightly while its counterpart holds product vapour pressure.
Broad Spectrum of Applications
DSW Industry’s LNG storage tanks and regasification solutions cater to a diverse range of applications, including:
Satellite LNG Plants: Provide reliable gas distribution in remote locations.
Peak Shaving Plants: Meet fluctuating natural gas demands during peak periods.
Backup Power Supply: Ensure uninterrupted power generation during outages.
Virtual Pipeline Solutions: Offer a cost-effective alternative to traditional pipeline infrastructure.
Mobile LNG Units: Provide flexible and portable LNG storage options.
LNG Power Generation: Supply fuel for cleaner and more efficient power plants.
Import Terminal Storage & Handling: Facilitate efficient LNG import and distribution.
Benefits for Overseas Buyers:
Reliable Performance: DSW Industry’s LNG storage tanks and regasification systems adhere to the strictest safety and quality standards.
Global Expertise: We possess extensive experience working with overseas buyers, ensuring smooth communication and project management.
Scalable Solutions: We offer various options for your project requirements and budget.
End-to-End Support: Our team is dedicated to providing comprehensive support throughout the entire project lifecycle.
Contact DSW Industry today to discuss your LNG storage and regasification needs.
Our team of experts can help you select the optimal solution for your application.
