27M3 Semitrailer Tank

Tanker Semitrailer

Tanker semitrailers play a crucial role in the transportation and logistics industry by enabling the efficient and safe movement of large quantities of liquids or bulk materials over long distances.
Standard sizes for LNG transport trailers typically range from approximately 40 feet (12.2 meters) to 53 feet (16.2 meters) in length.
DSW’s LNG transport line comprises vacuum-insulated, cryogenic semi-trailers explicitly designed for over-the-road transportation of liquefied natural gas.

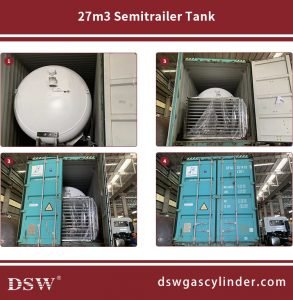

27M3 Semitrailer Tank

A semitrailer tank, also known as a tanker semitrailer or simply a tank trailer, is a specialized type of trailer designed to transport liquid gases or bulk gas supply.
It consists of a tank body mounted on a chassis pulled by a tractor unit or truck. The tank body is cylindrical or rectangular and is typically constructed from materials such as aluminium, stainless steel, or carbon steel, depending on the transported cargo type.

DSW International is a leading supplier of tank trailers, tank trucks, cryogenic equipment and related components used in the gas industry worldwide.

8000 GAL 30000L liquid tank trailers GB7258 exported to Saudi Arabia

Main Feature:

Tank Design: The tank is designed to contain the cargo securely and prevent leakage during transportation. The shape and size of the tank are optimized for efficient loading, stability, and weight distribution. Depending on the type of cargo, the tank may have compartments, baffles, or specialized internal structures to prevent cargo movement and ensure stability on the road.

Structural Reinforcement: Tanker semitrailers have reinforced structures to ensure structural integrity and withstand the stresses associated with transporting heavy loads.
Brand new cryogenic liquid transport semi-trailer for liquid Oxygen/ Argon/ Nitrogen.
Volume 30,000L; working pressure: 1.6 bar,
Overall dimension: Φ11810 X 2500 X 3650
Inner shell: stainless steel (S30408),
Outer shell: carbon steel (Q345R),
The Cryogenic pump, including the inlet and outlet flexible hose and filter, is attached to the tank.
Design standard:
a.GB150 (Pressure Vessels)
b.GB/T18442 (Multi-layer Insulation Pressure Vessel)

Model Name Medium Volume Overall Dimension Inner shell Outer shell Design Standard
9401GDYNW LN2 transporter Liquid oxygen/argon/nitrogen 30000L Φ11810*2500*3650 mm Stainless steel (S30408) carbon steel (Q345R) a.GB150 (Pressure Vessels) b.GB/T18442 (Multi-layer Insulation Pressure Vessel



27M3 Semitrailer Tank Cryogenic Storage Tank
27M3 Semitrailer Tank Cryogenic Storage Tank
27M3 Semitrailer Tank Cryogenic Storage Tank
27M3 Semitrailer Tank Cryogenic Storage Tank

27M3 Semitrailer Tank Cryogenic Storage Tank

20M3 Cryogenic Storage Tank , LOX storage tank

The capacity of a semitrailer tank can vary greatly depending on its size and design, ranging from a few thousand liters to tens of thousands of liters.
They are typically used for transporting a wide range of substances, including petroleum products, chemicals, gases, water, food-grade liquids, and agricultural products such as fertilizers or liquid livestock feed.
Semitrailer tanks play a crucial role in the logistics and supply chain of various industries, enabling the efficient and safe transportation of liquids and bulk materials over long distances.
