Understanding Multi-Layer Insulation (MLI) in Cryogenic Systems
Delve into Multi-Layer Insulation (MLI), Super Insulation Technology and its application in cryogenic systems.

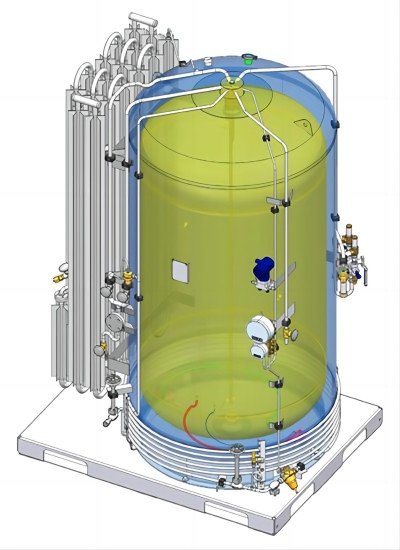

Cryogenic vessels that need high thermal isolation are typically enclosed in an outer vessel with a vacuum-evacuated space between them. With an ambient vacuum settle pressure of 10^-4 torr over 24 hours, convective heat transfer across this space is almost eliminated. Conductive heat transfer is minimized by creating a small heat path between the outer and inner vessels, using materials with low thermal conductivity, such as G-10 NEMA Grade Fiberglass or low-density ceramics. Radiated heat transfer is controlled by a barrier around the inner vessel, preventing heat from radiating into it.
This article discusses the modifications made to standard MLI for cryogenic environments, including using lower-emissivity materials and increased layer thickness for optimal insulation performance.
Multi-layer insulation (MLI) is a highly effective thermal insulation technology used in cryogenic systems to minimize heat transfer. It comprises multiple layers of thin, reflective materials separated by spacers.
Q: How many types of super-insulation technology are available in the market?
A: There are several types of super-insulation technologies available in the market. Some of the most common types include:
- Multi-Layer Insulation (MLI): This type of insulation uses multiple layers of thin, reflective materials to create a high-performance system.
- Aerogel Insulation: A lightweight, highly porous material creates a low-density insulation system with excellent thermal performance.
- Vacuum Insulation Panels (VIPs): Highly insulated panels use a vacuum to minimize heat transfer.
- Foam Insulation: Employs foam materials, such as polyurethane or polystyrene, to create a high-performance insulation system.
- Phase-Change Material (PCM) Insulation: Uses materials that absorb and release heat during phase changes, maintaining consistent temperatures.
Each type of super-insulation technology has unique advantages and disadvantages, and the best choice depends on the specific application and performance requirements.
Q: What type of MLI is used in cryogenic insulation?
A: The Multi-Layer Insulation (MLI) used in cryogenic insulation is typically a modified version of standard MLI. The basic principles of MLI remain the same, but key differences include using lower-emissivity materials to reflect more radiation heat transfer and minimize heat loss. Additionally, cryogenic MLI may have more layers and thicker layers to achieve the desired level of insulation, and it may be designed to be more flexible and durable to withstand extreme cold temperatures and thermal cycling.
Q: How does MLI work in a super-insulated system?
A: Multi-layer insulation (MLI) uses multiple layers of thin reflective sheets or films to achieve high levels of thermal insulation. Each layer reflects thermal radiation, significantly reducing heat transfer by radiation. The effectiveness of MLI depends on the number of layers, the thickness of each layer, the spacing between layers, and the emissivity of the reflective material. MLI is lightweight and compact, making it ideal for space applications. However, manufacturing and installation can be more challenging than traditional insulation materials.
Q: Is vacuum level an essential factor in superinsulation? How does it improve MLI performance in a super-insulated system?
A: Vacuum is critical in improving the performance of MLI-based super-insulation technology. A vacuum between the reflective layers reduces heat transfer by conduction and convection, as no air molecules carry heat. This enhances the thermal performance of the MLI blanket by minimizing thermal bridging and allowing the primary mode of heat transfer to be radiation, which is less affected by vacuum.
Q: What is the relationship between vacuum level and heat leak performance in MLI-type super-insulation?
A: The vacuum level in MLI-type super-insulation directly affects heat leaks. Higher vacuum levels reduce heat transfer through conduction and convection, improving insulation performance. Maintaining a high vacuum level can be challenging, but it is essential for optimizing insulation performance.
Q: How do molecular sieves and hydrogen getters help maintain vacuum over the lifetime of MLI-type super-insulation?
A: Molecular sieves and hydrogen getters maintain vacuum in MLI-based super-insulation by absorbing water vapor and hydrogen gas, respectively. Molecular sieves reduce the gas inside the vacuum envelope, maintaining the vacuum level and improving thermal performance. Hydrogen getters absorb hydrogen gas, which is particularly challenging to remove, helping to keep the vacuum and enhance insulation performance over time.
Q: How do hydrogen molecules infiltrate a closed vacuum environment in super-insulation systems?
A: Hydrogen molecules can enter a closed vacuum environment through outgassing from materials, diffusion through materials, virtual leaks of residual gas in the vacuum envelope, and contamination during manufacturing or installation. These factors can introduce hydrogen into the insulation, affecting its performance.
Q: How do outgassing and virtual leaks of hydrogen molecules into the vacuum annular space affect super-insulation performance regarding heat leaks, and why is it considered a significant challenge?
A: Hydrogen molecules have high thermal conductivity, significantly increasing heat transfer and reducing insulation performance. Hydrogen can diffuse quickly through materials and react with metals, affecting structural integrity. Therefore, the presence of hydrogen is a significant concern for super-insulation systems.
Q: How much hydrogen typically diffuses from common cryogenic construction materials in a typical vacuum-insulated system?
A: Typical hydrogen diffusion rates for common cryogenic materials are as follows:
- Carbon steel: 0.44T-L/kg (T-L = Torr-Liters)
- 300 series stainless steel: 0.22
- Aluminium: 0.20
- MLI (Glass paper and AL foil): 5.0T-L/m3
Disclaimer: The above data is for illustration purposes and does not consider outgassing rates, virtual leaks, or contamination during manufacturing.
