A pressure vessel for storage is a specially engineered container designed to safely hold gases or liquids at pressures significantly higher than atmospheric pressure. Among the most widely used pressure vessels are gas cylinders, which play a critical role in industrial manufacturing, medical supply, laboratories, energy systems, and chemical processing.
Gas cylinders are designed to store large amounts of energy in a controlled and safe manner. Understanding their design, operating principles, and safety features is essential for ensuring safe handling and regulatory compliance.
What Is a Pressure Vessel for Storage?
A pressure vessel for storage is a closed container designed to hold gases or liquids at a pressure different from ambient pressure. These vessels must withstand internal forces generated by pressurised contents while maintaining structural integrity throughout their service life.
Pressure vessels are commonly used for:
- Gas storage and transportation
- Chemical processing
- Energy and industrial systems
- Cryogenic and liquefied gas storage
Gas cylinders are classified as pressure vessels because they operate at pressures well above atmospheric levels, often exceeding hundreds of bar depending on the application.
What Is a Gas Cylinder?
A gas cylinder is a type of pressure vessel specifically designed for the storage and containment of gases under high pressure. Gas cylinders are also referred to as bottles or tanks, depending on regional or industry terminology.
A typical gas cylinder has the following key structural features:
- An elongated cylindrical body
- Rounded or domed ends
- A valve assembly at the top
- A flat base or foot ring for vertical stability
The valve and outlet connection allow the stored gas to be safely controlled, regulated, and delivered to downstream equipment.

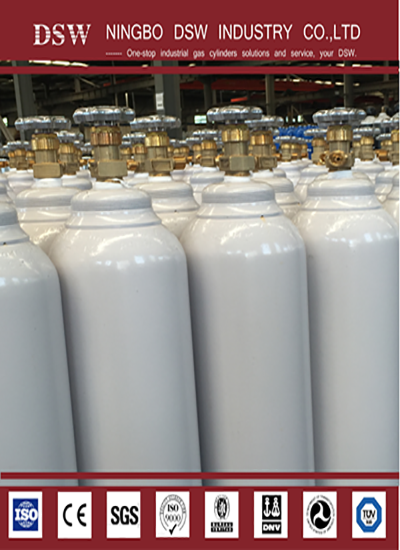

Example of a gas cylinder pressure vessel:
Liquefied Gases with Vapour Pressure
Some gases are stored partly as liquid and partly as vapour inside the cylinder. Examples include:
- Carbon dioxide (CO₂)
- Liquefied petroleum gas (LPG)
- Ammonia
In these cases, pressure is maintained by the vapour pressure of the liquid phase, which varies with temperature.
Dissolved Gases
Certain gases are stored dissolved in a solvent or porous material to improve stability and safety.
A common example is:
- Acetylene, dissolved in acetone within a porous mass
This method significantly reduces the risk of decomposition or explosion.
Supercritical Fluids
Some gases may be stored under supercritical conditions, where the substance exhibits properties of both gas and liquid.
An example includes:
- Supercritical carbon dioxide used in industrial and scientific applications
These storage conditions require precise pressure vessel design and strict controls.
Types of Gases Stored in Pressure Vessels
The physical state of gas inside a cylinder depends on its chemical properties, storage pressure, and temperature.
Compressed Gases
Compressed gases are stored entirely in gaseous form at high pressure. Common examples include:
- Nitrogen
- Oxygen
- Helium
- Argon
These gases remain gaseous under normal storage conditions and rely solely on pressure to increase storage density.
Gas Cylinder Design and Construction
Gas cylinders are carefully engineered to handle extreme internal pressures while minimising the risk of failure.
Cylindrical Shape and Rounded Ends
The cylindrical body with rounded or hemispherical ends is a key safety feature. This geometry allows internal pressure to be distributed evenly across the vessel walls.
From an engineering standpoint:
- Rounded surfaces reduce stress concentration
- Flat or sharp corners fail at lower pressures
- Cylindrical vessels tolerate higher tensile loads
While a perfect sphere would be the most efficient pressure vessel, cylinders offer the best balance between strength, manufacturability, transport, and storage practicality.
Materials Used in Gas Cylinders
Gas cylinders are typically manufactured from high-strength materials, including:
- Seamless carbon steel
- Alloy steel
- Aluminium alloys
Material selection depends on:
- Working pressure
- Gas type
- Corrosion resistance requirements
- Weight and transport considerations
In some applications, composite or lined cylinders may also be used.
Why Cylinders Are Ideal for High-Pressure Gas Storage
Gas cylinders are widely adopted because they provide:
- High pressure resistance
- Structural reliability
- Ease of handling and stacking
- Compatibility with standardised valves and regulators
Their shape and material properties allow them to withstand repeated pressurisation cycles over long service lives when properly maintained.
Safety Risks of High-Pressure Gas Cylinders
Because gas cylinders store large amounts of energy, improper handling or mechanical damage can pose serious risks.
A damaged cylinder may:
- Rapidly release pressurised gas
- Become an uncontrolled projectile (rocket effect)
- Cause injury, fatalities, or structural damage
The sudden failure of a valve or seal can result in gas being discharged at extremely high velocity, making safety design and handling procedures essential.
Cylinder Valves and Pressure Relief Mechanisms
Valve Design and Controlled Failure
Cylinder valves are engineered to control gas flow and act as a safety interface between the pressure vessel and the user.
Many valves are designed to fail in a controlled manner, with a limited opening diameter (typically around 0.75 cm) if damaged. This design helps:
- Reduce discharge rate
- Limit thrust force
- Decrease the likelihood of large cylinders becoming airborne
Pressure Relief Devices (PRDs)
Pressure relief devices may be incorporated to prevent over-pressurisation caused by:
- External heat exposure
- Temperature rise
- Internal pressure increase
PRDs allow excess pressure to be safely released before structural failure occurs.
Applications of Pressure Vessels for Gas Storage
Gas cylinders are essential in a wide range of industries, including:
- Industrial manufacturing and metal fabrication
- Medical and healthcare gas supply
- Laboratory and research facilities
- Energy, chemical, and petrochemical industries
- Fire protection and safety systems
Each application requires adherence to relevant pressure vessel standards and inspection protocols.
Conclusion
A gas cylinder is a highly engineered pressure vessel for storage, designed to safely contain gases at pressures far above atmospheric levels. Through carefully selected materials, rounded geometry, and advanced valve and safety systems, gas cylinders provide a reliable solution for high-pressure gas storage and transport.
Proper design, certification, handling, and maintenance are essential to ensuring safety, regulatory compliance, and long-term performance in all gas storage applications.
TECHNICAL QUESTIONS
Frequently asked questions
A pressure vessel for storage is a closed container designed to safely hold gases or liquids at pressures above atmospheric pressure. Gas cylinders are a common type of pressure vessel used for storing industrial, medical, and specialty gases.
Gas cylinders are considered pressure vessels because they store gases at high internal pressures, often hundreds of bar, and must be engineered to withstand these forces safely throughout their service life.
Gas cylinders are round because rounded and cylindrical shapes distribute internal pressure evenly, reducing stress concentration and lowering the risk of rupture compared to flat or angular containers.
Pressure vessels can store compressed gases, liquefied gases with vapor pressure, dissolved gases such as acetylene, and supercritical fluids, depending on the gas properties and application requirements.
If a gas cylinder valve breaks, the rapid release of high-pressure gas can cause the cylinder to become an uncontrolled projectile, often described as a rocket effect, posing serious safety risks.
