ISO Tank CONTAINER – transportation solution for liquefied gas
DSW supplies its global Industrial Gas market with 20ft Cryogenic ISO Tanks and 40ft T75 Tank Containers from China.
The tanks are used explicitly for transporting and storing Class 2 refrigerated liquified gases.
1. ISO tank container technical spec
| Model：1CC-TCS-20000/16 Insulation type： Multi-layer | ||||
| NO | Items | Inner vessel | Outer vessel | |
| 1 | Design pressure MPa | 1.6 | -0.1（outer） | |
| 2 | Working pressure MPa | 1.6 | -0.1（outer） | |
| 3 | MAWP MPa | 1.6 | / | |
| 4 | Design temperature ℃ | -196 | -19～50 | |
| 5 | Working temperature ℃ | ≥-196 | normal | |
| 6 | Pneumatic test MPa | 1.6 | HLD | |
| 7 | G. Vol m3 | 20.8 | 5.5(interlayer) | |
| 8 | E. Vol m3 | 19.76 | / | |
| 9 | Medium | LOX/LIN/LAR | Multi-layer | |
| 10 | Main material | S30408 | Q345R | |
| 11 | Treatment | Pickling and passivation | Sanding and coating | |
| 12 | Corrosion allowance mm | 0 | 0 | |
| 13 | Joint efficiency | 1 | 0.85 | |
| 14 | Filling rate | 95% | / | |
| 15 | Static evaporation %/d | ≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR), | ||
| 16 | Seal off vacuum degree Pa | ≤1×10–2 | ||
| 17 | Leakage of vacuum interspace Pam3/s | ≤1×10–6 | ||
| 18 | ISO code | 22T7 | ||
| 19 | Diameter mm | Φ2150 | Φ2400 | |
| 20 | External Dimensions mm | 6058×2438×2591 | ||
| 21 | type | Horizontal | ||
| 22 | Tare weight Kg | ~7890 | ||
| 23 | Fully loading weight Kg | ~15986(LIN), ~27585(LAR), ~22546(LOX) | ||
| 24 | Design service life | 15years | ||
| 25 | Open pressure for safety valve | 1.89Mpa | ||
| 26 | Sort | Ⅲ | ||
| 27 | Portable tank guideline | T75 | ||
What are T75 ISO Tanks?
T75 ISO tanks have been double-walled vacuum containers with multi-layer insulation, suitable for distributing and transporting liquefied gas and chemicals.
These tanks, constructed according to ISO standards and built to last long-distance transports while maintaining their contents’ safety and integrity, can withstand rigours.
T75 tanks, typically made of stainless steel or steel, have advanced pressure control and insulation systems allowing them to transport various hazardous materials safely.
DSW is specialized in supplying portable tank containers for liquefied gas, like LOX/LIN/LAR/LNG.
The design temperature is -196°to 40°. ISO code for this type of tank container is T75.

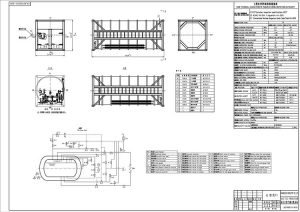

Liquid Cryogenic Storage 20ft ISO Tank Container.
CRYOGENIC VAPORIZERS AND HEAT EXCHANGERS
DSW offers a complete line of cryogenic fluid vaporizers, trim heaters, and heat exchangers for industrial gases, rare gases, LNG, and other hydrocarbons of any capacity. Whether continuous operation, peak shaving, intermittent, or backup supply, we can offer competitive solutions to get the job done. Our design team has extensive experience with ambient vaporizers, gas, and diesel-fired vaporizers, heat recovery vaporizers, electric vaporizers, and more.
The DSW Plant is certified according to:
– AN ISO 9001/2000
– ASME (U, U2, R-Stamp)
– Manufacture license of special equipment
People’s Republic of China and others
