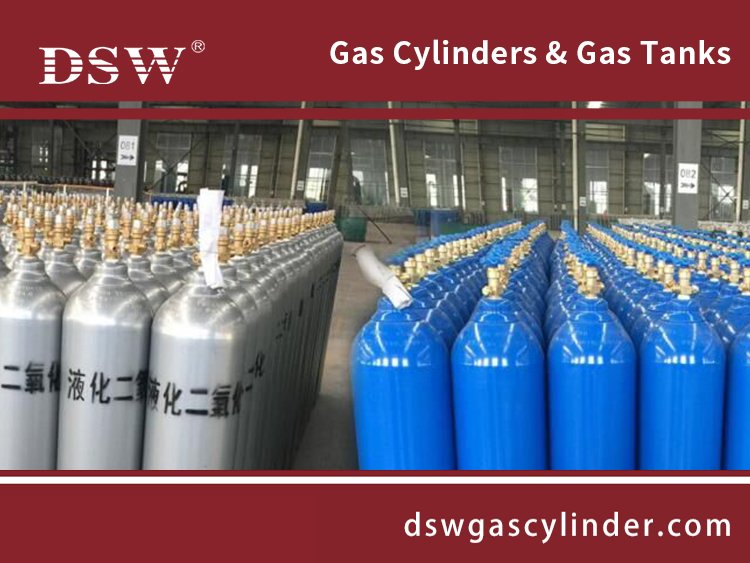

What is a gas cylinder?
A gas cylinder is a high-pressure container designed to safely store and transport compressed or liquefied gases. Gas cylinders are widely used across industries such as medical, industrial, laboratory, food, and welding.
They are generally made from high-strength steel or aluminium, chosen for their ability to withstand high internal pressures. Gas cylinders come in various sizes—from small portable units to large industrial cylinders capable of holding thousands of litres of gas.
Types of Gas Cylinders
Gas cylinders are classified based on the type of gas they contain:
- Industrial gases: Oxygen, nitrogen, argon, carbon dioxide, and acetylene, used in welding, cutting, and manufacturing.
- Medical gases: Oxygen, nitrous oxide, and medical air, used in hospitals and clinics.
- Specialty gases: Used in laboratories, electronics, and food industries where high purity or specific gas mixtures are required.
Construction of Gas Cylinders
Gas cylinders are engineered to safely store gases under high pressure. They are typically constructed from high-strength materials and follow strict international standards.
- Material: Manufactured from seamless steel or aluminium to ensure durability and resistance to pressure.
- Cylinder Body: Formed through hot pressing or deep drawing to eliminate weld seams and reduce stress points.
- Neck and Valve System: A threaded cylinder neck holds a valve that regulates gas flow and prevents leaks.
- Surface Treatment: The cylinder is heat-treated, coated, or painted to resist corrosion and extend service life.
- Testing and Certification: Each cylinder undergoes hydrostatic and pressure tests to ensure compliance with standards such as ISO, DOT, and CE.
- Customisation: DSW offers tailored solutions, including various cylinder sizes, capacities, and surface finishes, to meet specific industrial or medical requirements.
A typical gas cylinder design is elongated, standing upright on a flattened bottom end, with the valve and fitting at the top for connecting to the receiving apparatus.
These valves can usually be opened and closed with the help of a regulator, which helps control the flow rate and pressure of the gas being released.
The term cylinder in this context is not to be confused with a tank, the latter being an open-top or vented container that stores liquids under gravity.
However, the term scuba tank is commonly used to refer to a cylinder used for breathing gas supply to an underwater breathing apparatus.
Key Features of Gas Cylinders
- High-pressure resistance: Cylinders safely contain gases at pressures up to several hundred bars.
- Durability: Steel and aluminium construction ensures long service life under harsh conditions.
- Safety valves and regulators: Modern cylinders include valves, regulators, and caps to prevent leaks and ensure safe use.
- Portability: Small cylinders are easy to transport for medical or laboratory use, while large cylinders are designed for industrial handling.
What are gas cylinders made of?
Gas cylinders can be made from aluminum, steel, alloys, and composite materials. Mechanical strength, corrosion resistance, and impact resistance are critical factors in determining the material used.
Carbon fiber composite cylinders can be very light due to the high tensile strength of carbon fiber but are more challenging to manufacture.
What Is the Pressure in a Gas Cylinder?
Compressed gases are typically stored in cylinders in three main forms: liquefied, non-liquefied (permanent), and dissolved gases.
The internal pressure of a gas cylinder depends on the type of gas and storage conditions and is usually expressed in kilopascals (kPa) or pounds per square inch gauge (psig).
For reference, standard atmospheric pressure at sea level is approximately 101.4 kPa (14.7 psi).
| Gas Type | Example Gases | Typical Cylinder Pressure (kPa) | Notes |
|---|---|---|---|
| Liquefied Gas | Acetylene, LPG | 150 – 300 kPa (low-pressure) for acetylene; LPG ~1,500 – 2,500 kPa | Pressure rises with temperature; largely constant while liquid present |
| Non-Liquefied (Permanent) | Oxygen, Nitrogen, Argon | 12,000 – 20,000 kPa (120 – 200 bar) | Pressure drops proportionally as gas is used |
| Dissolved Gas | Acetylene in acetone | 150 – 250 kPa | Safer storage due to solvent absorption; pressure stable until cylinder near empty |
Notes:
- Values are measured at 20°C (68°F) unless otherwise specified.
- For liquefied gases, cylinder pressure does not indicate remaining quantity; weight measurement is required.
- For non-liquefied gases, cylinder pressure directly correlates with the remaining volume.
What Is the Capacity of an Oxygen Cylinder?
A standard oxygen cylinder has an internal volume of 26.73 litres. When fully charged, the cylinder pressure is typically 2,200 psi (approximately 15,165 kPa).
For usage at standard atmospheric conditions, the working pressure is adjusted to around 14.7 psi (101 kPa) to ensure safe and controlled oxygen delivery.
What Are the Sizes of Gas Cylinders?
Gas cylinders are available in a variety of sizes to meet different industrial and commercial needs. Below is a reference chart for argon gas cylinder sizes, showing standard bottle sizes and their capacities.
Argon Gas Cylinder Sizes and Capacities
| Size | Height (mm) | Capacity (m³) |
|---|---|---|
| G2 | 1460 | 10.2 |
| E2 | 780 | 4.1 |
Note: The capacities listed are based on standard pressure conditions. Actual capacity may vary depending on cylinder design and filling pressure.
Applications of Gas Cylinders
Gas cylinders are essential tools across a wide range of industries and applications. Their ability to safely store and transport compressed or liquefied gases makes them indispensable in both professional and industrial settings.
- Healthcare: Providing medical oxygen for patients, anaesthetic gases in surgical procedures, and medical-grade nitrous oxide for pain management and sedation.
- Manufacturing and Construction: Supplying gases such as oxygen, acetylene, and argon for welding, cutting, and various fabrication processes.
- Food and Beverage: Carbon dioxide for carbonation in soft drinks and nitrogen for food packaging, preservation, and modified atmosphere applications.
- Laboratories and Research: Specialty gases used in experiments, quality testing, chemical analysis, and scientific research.
Safety Considerations
Handling gas cylinders requires care due to high pressure and potential hazards. Key safety tips include:
- Always secure cylinders upright.
- Avoid exposure to heat or open flames.
- Use the correct regulators and valves for each gas type.
- Store cylinders in well-ventilated areas.
Maintaining optimal pressure in a liquefied gas cylinder can be incredibly difficult when the temperature drops. Cold external temperatures prevent the liquid from vaporizing, which makes your gas cylinders unusable because of low pressure.
No matter what specialty gas you use – and regardless of the size you need – it is essential to keep safety practices at the forefront of your mind. If your high-pressure cylinders are handled roughly or allowed to reach high temperatures without proper regulation, they are at risk of exploding without warning.
