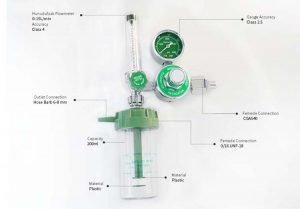

Regulator with Humidifier Bottle

Oxygen Regulator Gauge

DSW specializes in designing and manufacturing various oxygen regulator gauges, regulators, and medical therapy and suction devices.
Our products are UL-listed and CE-marked, with safety gas valves and gas shut-off valves CSA-listed.
The design and construction adhere to EN ISO standards, including EN ISO 2503, EN ISO 5172, EN 730-1, EN ISO 562, and EN ISO 837-1.

  • Material Quality
  • The central part is made from high-quality copper, precisely cut using a digitally controlled lathe.
  • Design
    • Lengthened air inlet valve lever, suitable for different capacities of oxygen cylinders.
    • We integrated a casting flowmeter for enhanced durability and performance.
  • Components
    • Flow tubes and wet cups are made of high-strength polycarbonate plastic.
    • High-temperature, high-pressure sterilized humidifier body, compliant with European B-level disinfection standards.
      • Maximum temperature: 121°C
      • Pressure: 0.142MPa
  • Filtration
    • Polymer high-density filter ensures uniform wetting.
FacebookXPinterestRedditLinkedinWhatsappTelegram

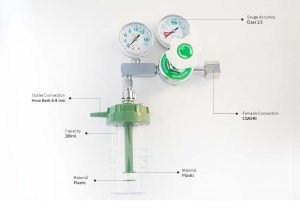

Medical Oxygen Regulator with Humidifier Bottle

A medical oxygen regulator is essential for controlling the PSI (pounds per square inch) or flow of compressed medical oxygen from a tank to a medical device such as a flow meter, hose, or humidifier.
It reduces the high pressure of oxygen in the cylinder to a safe and usable level for medical applications, most commonly used in Oxygen Therapy.

Sizes Chart

Oxygen Regulator with Humidifier Bottle

O2 Cylinder Regulator Specification

Specification Details
Name Flow meter for oxygen cylinder
Adjustable Flow Range 0-10LPM, 0-15LPM, 0-70LPM
Connector CGA540, G5/8, bullnose, DIN477, etc.
Model YR-89
Colour Colour-coded for identifying gas types
Material of Flowmeter Chromed brass body for oxygen flow meter, with steel ball
Material of Dry Humidifier Polycarbonate, volume 200ml
Input Pressure 15Mpa, 2200 PSI
Working Pressure 0.2-0.3Mpa
Control Pressure of Safety Valve 0.35-0.05Mpa
Used Be put into the oxygen outlets of the gas supply equipment, or pendant (e.g., surgical pendant, ICU pendant, hospital) or mounted in the oxygen tanks
Certification ISO 13485

Oxygen Regulator with Humidifier Bottle
Oxygen Regulator with Humidifier Bottle

Types of Oxygen Regulators

Medical oxygen regulators come in various types, each suited to different applications:

  1. Standard Regulators:
    • Description: These regulators have a preset PSI setting of 50 PSI, maintaining a constant and consistent oxygen output.
    • Application: Commonly used where a fixed delivery pressure is sufficient.
  2. Adjustable Regulators:
    • Description: Allow users to adjust the PSI output within a range, usually 0-100 PSI or 0-50 PSI. Equipped with two gauges to measure tank oxygen level and PSI output.
    • Application: Suitable when precise control over delivery pressure is required.
  3. Flow Control Regulators:
    • Description: Designed to control the oxygen flow rate (LPM). They have two gauges for tank oxygen level and LPM reading, with a preset PSI output of 50 PSI.
    • Application: Ideal for applications requiring specific flow rates.
  4. Regulator & Flowmeter Combos:
    • Description: Combines the functionality of flow control regulators with an attached flowmeter instead of an LPM gauge, providing more precise control.
    • Application: Preferred in many medical settings for its accuracy in monitoring and controlling LPM.

Oxygen Regulator with Humidifier Bottle
Oxygen Regulator with Humidifier Bottle
Oxygen Regulator with Humidifier Bottle
