CNG Steel Cylinder
| Pressure | |||||||||
| No. | Model No. | Outer Diameter (mm) | Capacity (L) | Length Without Valve (mm) | Weight (Kg) | Thickness (mm) | Working (Mpa) | Test (Mpa) | Material |
| 1 | CNP40-60-267A | 267 | 40 | 930 | 41 | 6.1 | 20 | 30 | 34CrMo4 |
| 2 | CNP20-60-267A | 60 | 1320 | 58 | |||||
| 3 | CNP20-50-279A | 279 | 50 | 1045 | 52 | 6.4 | 20 | 30 | 34CrMo4 |
| 4 | CNP20-60-279A | 60 | 1225 | 60 | |||||
| 5 | CNP20-70-279A | 70 | 1400 | 68 | |||||
| 6 | CNP20-80-279A | 80 | 1585 | 76 | |||||
| 7 | CNP20-100-279A | 100 | 1945 | 92 | |||||
| 8 | CNP20-50-325A | 325 | 50 | 815 | 54 | 7.0 | 20 | 30 | 34CrMo4 |
| 9 | CNP20-55-325A | 55 | 880 | 58 | |||||
| 10 | CNP20-57-325A | 57 | 905 | 60 | |||||
| 11 | CNP20-60-325A | 60 | 945 | 62 | |||||
| 12 | CNP20-62-325A | 62 | 975 | 63 | |||||
| 13 | CNP20-65-325A | 65 | 1015 | 66 | |||||
| 14 | CNP20-68-325A | 68 | 1050 | 68 | |||||
| 15 | CNP20-70-325A | 70 | 1080 | 70 | |||||
| Pressure | |||||||||
| No. | Model No. | Outer Diameter (mm) | Capacity (L) | Length Without Valve (mm) | Weight (Kg) | Thickness (mm) | Working (Mpa) | Test (Mpa) | Material |
| 16 | CNP20-73-325A | 325 | 73 | 1120 | 72 | 7.0 | 20 | 30 | 34CrMo4 |
| 17 | CNP20-75-325A | 75 | 1145 | 73 | |||||
| 18 | CNP20-77-325A | 77 | 1170 | 75 | |||||
| 19 | CNP20-80-325A | 80 | 1210 | 77 | |||||
| 20 | CNP20-85-325A | 85 | 1280 | 81 | |||||
| 21 | CNP20-90-325A | 90 | 1345 | 85 | |||||
| 22 | CNP20-95-325A | 95 | 1410 | 89 | |||||
| 23 | CNP20-100-325A | 100 | 1475 | 92 | |||||
| 24 | CNP20-105-325A | 105 | 1540 | 96 | |||||
| 25 | CNP20-110-325A | 110 | 1610 | 100 | |||||
| 26 | CNP20-115-325A | 115 | 1675 | 104 | |||||
| 27 | CNP20-120-325A | 120 | 1740 | 108 | |||||
| 28 | CNP20-60-356A | 356 | 60 | 820 | 66 | 7.5 | 20 | 30 | 34CrMo4 |
| 29 | CNP20-65-356A | 65 | 875 | 69 | |||||
| 30 | CNP20-70-356A | 70 | 930 | 73 | |||||
| 31 | CNP20-75-356A | 75 | 985 | 76 | |||||
| 32 | CNP20-80-356A | 80 | 1040 | 80 | |||||
| 33 | CNP20-90-356A | 90 | 1150 | 87 | |||||
| 34 | CNP20-100-356A | 100 | 1260 | 94 | |||||
| 35 | CNP20-120-356A | 120 | 1480 | 108 | |||||
| 36 | CNP20-125-356A | 125 | 1535 | 112 | |||||
| 37 | CNP20-130-356A | 130 | 1590 | 115 | |||||
| 38 | CNP20-140-356A | 140 | 1700 | 122 | |||||
| 39 | CNP20-145-356A | 145 | 1755 | 125 | |||||
| 40 | CNP20-150-356A | 150 | 1810 | 129 | |||||
| 41 | CNP20-80-406A | 406 | 80 | 850 | 86 | 8.8 | 20 | 30 | 34CrMo4 |
| 42 | CNP20-90-406A | 90 | 930 | 93 | |||||
| 43 | CNP20-100-406A | 100 | 1020 | 101 | |||||
| 44 | CNP20-110-406A | 110 | 1105 | 108 | |||||
| 45 | CNP20-120-406A | 120 | 1190 | 116 | |||||
| 46 | CNP20-130-406A | 130 | 1275 | 123 | |||||
| 47 | CNP20-140-406A | 140 | 1360 | 131 | |||||
| 48 | CNP20-145-406A | 145 | 1400 | 135 | |||||
| 49 | CNP20-151-406A | 151 | 1450 | 139 | |||||
| 50 | CNP20-160-406A | 160 | 1530 | 146 | |||||
| 51 | CNP20-160-406A | 165 | 1570 | 150 | |||||
| 52 | CNP20-180-406A | 180 | 1695 | 161 | |||||
| 53 | CNP20-200-406A | 200 | 1865 | 176 | |||||

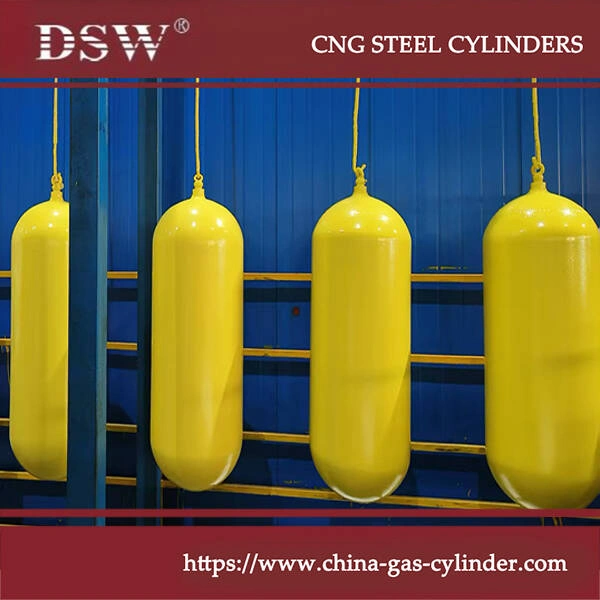

CNG Steel Cylinder – DSW Compressed natural gas (CNG) (methane stored at high pressure) is a fuel which can be used in place of gasoline, diesel fuel and propane/LPG in vehicles.
