MicroBulk Storage Systems-Micro Bulk Cylinders
Microbulk systems aren’t limited to large enterprises – smaller businesses can benefit too from bulk gas systems that use microbulk!
Bulk gas systems allow smaller firms to save on insurance, and handling costs and free up floor space (by no longer needing to store cylinders).
Plus, since you won’t lose gas via idle cylinder venting, you could use up to 20% less product!

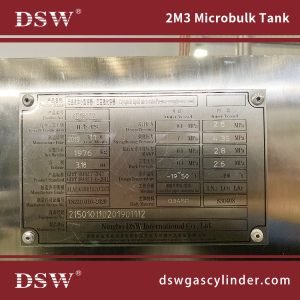

Nitrogen Microbulk Specification
| Model: CDLS-2/2.6 Insulation type: Multi-layer | |||
| NO | Items | Inner vessel | Outer vessel |
| 1 | Design pressure MPa | 2.8 | -0.1(outer) |
| 2 | Working pressure MPa | 2.6 | -0.1(outer) |
| 3 | MAWP MPa | 2.8 | / |
| 4 | Design temperature ºC | -196 | -19~50 |
| 5 | Working temperature ºC | ≥-196 | normal |
| 6 | Strength pressure MPa | 4.35 | HLD |
| 7 | G. Vol m3 | 2.1 | 1.38(interlayer) |
| 8 | E. Vol m3 | 2 | / |
| 9 | Medium | LIN/LOX/LAR | Multi-layer |
| 10 | Main material | S30408 | S30408 |
| 11 | Treatment | Pickling and passivation | Sanding (Sa2.5)and coating |
| 12 | Corrosion allowance mm | 0 | 0 |
| 13 | Joint efficiency | 1 | 0.85 |
| 14 | Filling rate | 95% | / |
| 15 | Static evaporation %/d | LN2≤0.7; LO2≤0.45; LAR≤0.49 | |
| 16 | Seal off vacuum degree Pa | ≤0.01 | |
| 17 | Interlayer seal leakage | ≤1×10-8 | |
| 18 | Diameter mm | Φ1200 | Φ1402 |
| 19 | External Dimensions mm | Φ1402×2690 | |
| 20 | Type | Vertical | |
| 21 | Tare weight Kg | ~1480 | |
| 22 | Fully loading weight Kg | 4300(LAR); | |
| 23 | Design service life | 15years | |
| 24 | Open pressure for safety valve | 2.75Mpa | |
| 25 | Medium max density kg/m3 | 1410(LAR) | |
| 26 | Thickness of coat, um | / | |
| 27 | Ex-work pressure of inner | 0.03Mpa | |
| 28 | Design code | GB | |
A Micro bulk Cylinder delivery system replaces high-pressure or liquid cylinders with a stainless steel, low-pressure storage tank, available from 230 to 5,500 litres, depending on the gas and volumes you need.
Features
A Micro Bulk Tank, a type of pressure vessel, stores and transports liquefied gases such as LO2, LAr, LN2, LCO2, and LNG.
It can withstand maximum working pressures of 0.8Mpa, 1.6Mpa, 2.5Mpa, and 3.5Mpa, and offers nominal volumes of 1M3, 2M3, 3M3, 5M3, 7.5M3, among others.

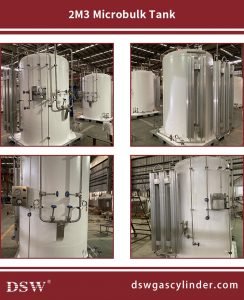

The Micro tanks feature a dual-structure design, comprising an inner and outer container.
The inner container is S30408 stainless steel, suspended in the Q345R outer container with supporting devices.
The space between the inner and outer containers is insulated with high-vacuum heat-insulated aluminium foil fibreglass.
A micro tank is suitable for transporting vaporized gases when connected to a vaporizer.
microbulk has many advantages.
Microbulk Means Efficiency
Storage tank sizes range from 450-3,000 liters. Utilizing highly accurate, programmable gauges and remote supply level monitoring telemetry technology allows for maximum efficiency of delivery.
Automatic truck delivery with no-loss filling process and cylinder management services available to provide zero-loss filling – eliminating wasted cylinder handling time or inventory management hassles;
no lost gas from idle cylinder venting or residual product left inside them. Gas mixers can also be utilized for creating custom mixtures like Ar/CO2, Ar/O2, and more.
Uninterrupted gas supply.
Microbulk Means Consistency
Ultra high-purity tank systems are available.
Ideal for laboratory environments and welding gas applications.
No contamination from recycled cylinders.
One high-purity source to serve multiple machines.
Micro Bulk Tanks -supplier
Microbulk is essentially a bulk storage system in miniature. A Microbulk delivery system replaces high-pressure or liquid cylinders with a stainless steel, low-pressure storage tank. DSW micro bulk is available from 230 to 5,500 liters, depending on the gas and volumes you need.
